Seitech Trailer Racks
Convert your existing trailer to a multi-boat carrier
For Sailboats, Canoes, Kayaks, and Other Boats

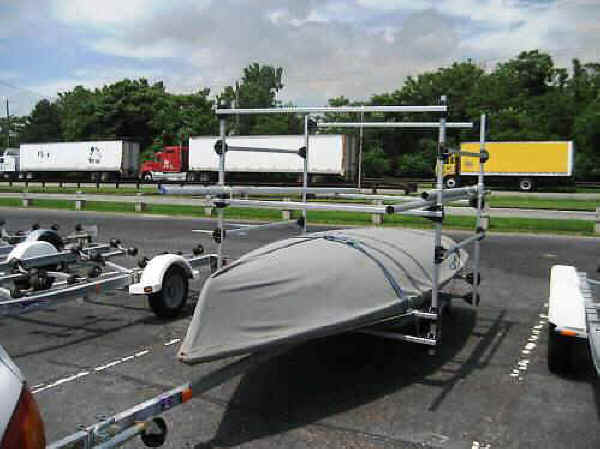

Seitech 3 Boat Trailer Rack
|
|
The Seitech Trailer Rack attaches to your existing
trailer to give you multi-boat capacity. Allows from 2 to 4 boats
to be carried. Kits are added to our existing racks, to allow them
to be attached to your trailer |
|
3 Tier Trailer Rack
Trailer not included |
Made of Aluminum, with engineered plastic joints, through-bolted stainless
steel fasteners and U-Bolt Trailer attachment |

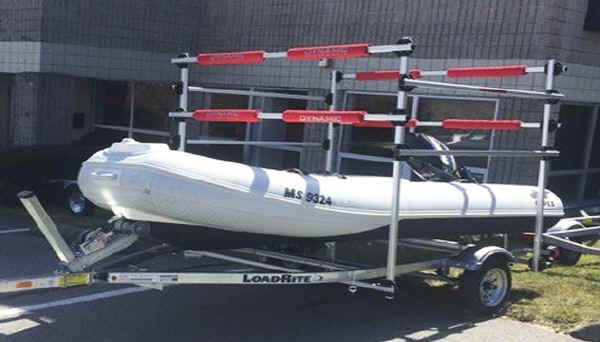

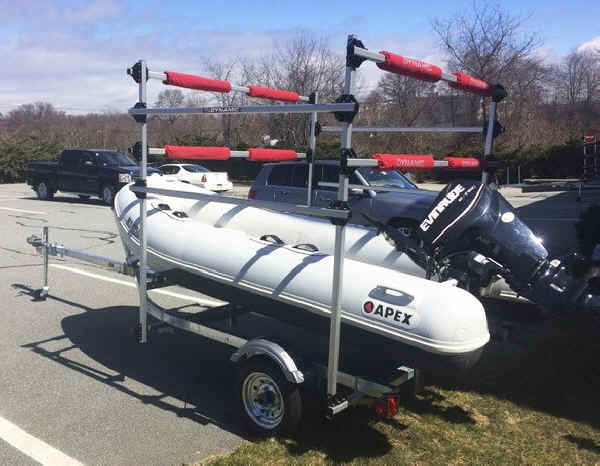

Typical Rack on customer supplied trailer, with optional rack pads
 |
|
 |
|
Trailer not included |
3 Boat Rack |
Kit comes with U-Bolts for Most Trailers |
|

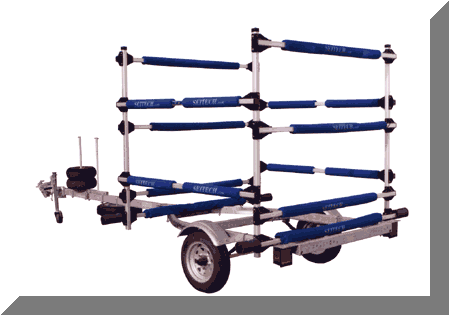

Side Loading Racks
for up to 8 Canoes or Kayaks
can be adapted to
your trailer
|
 |
|

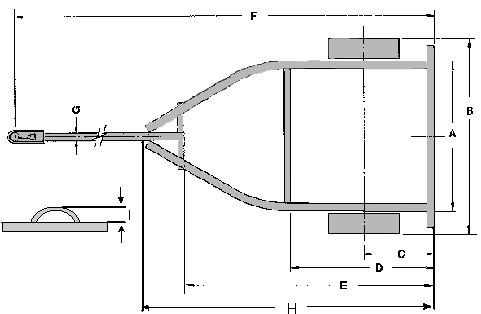

Diagram
References |
A- width of the trailer frame
B- width from outside fender to outside fender
C- from axle to back of rear channel
D- from center bar to back of rear channel
(some trailers do not have this center bar)
E- from forward cross channel to back of rear channel
F- overall length from ball coupler to back of rear channel
G- width of tongue
H- from start of side channels to back of rear channel
I - height of fender top over frame channel
J - length of rear channel, if applicable
K- width of side frame
|
| Trailer Mounting Kit Consists of Two
Lower Cross Bar Sections and Brackets. These Cross Bars are
fixed position and the same width as upper Box Rack.. This allows
easy attachment with supplied 3" x 6" U-Bolts. Due to
the Wide Variety of Trailers, this Kit MAY
REQUIRE other attachment Hardware to fit your Trailer. However, Common Brackets and Attachments, can be
Found in Hardware and Automotive Parts Stores. Installing this Kit
Does Require A Fair Amount of Mechanical Knowledge.
"A" Size Racks are 65 inches wide
(designed for boats 58" wide) and Fore to Aft Spacing is 63 inches
"B" Size Racks are 75 inches wide
(designed for boats 68" wide)
and Fore to Aft Spacing is 63 inches
Carefully measure your trailer to make sure rack
will clear Wheel wells, Fenders and other attachments our your trailer.
|
PRICES
|
Trailer Racks for Sailboats
Also For RowBoats ,
Pedal & Paddle Boats
All
Sailboat Racks have unpadded rails
optional rail pads are available
|
Price
|
Shipping
48 USA
|
|
9401-9530 Box - 2 - A* size Sailboats
|
$ 745.00 |
+ 79.95 S&H
|
|
9402-9530 Box - 3 - A* size Sailboats
|
$ 1020.00 |
+ 89.95 S&H |
|
9403-9530 Box - 4 - A* size Sailboats
|
$ 1195.00
|
+ 99.95 S&H
|
| 9404-9531 Box - 2 - B* size Sailboats |
$745.00 |
+ 89.95 S&H |
| 9405-9531 Box - 3 - B* size Sailboats |
$ 1070.00 |
+ 99.95 S&H |
| 9406-9531 Box - 4 - B* size Sailboats |
$ 1370.00 |
+ 129.95 S&H |
| Optimist Rack Systems available - Call |
|
|
| Canoe/Kayak Rack Systems available - Call |
|
|
| PTR-24 Optional
Rack Pads - Set of Two - 24" |
$34.00 |
|
| PTR-48 Optional
Rack Pads - Set of Two - 48" |
$57.00 |
|
"A" Style Racks fit Laser, Sunfish and
similar Boats up to 58" beam
"B" Style Racks fit JY15, Vanguard 15, 420,
MXRay, and similar Boats up to 68" beam
Note: Add an extra tier to allow longer spars to be
carried on top tier of rack
(i.e. have two boats order a three boat rack for extra spar storage
space )
|
Optional Rack pads are 48" long
Foam with Acrylic Cover.
Use to protect hulls, alternatively use carpet or
other materials to cover rack rails |
|
