Parts for Sportspal Canoes

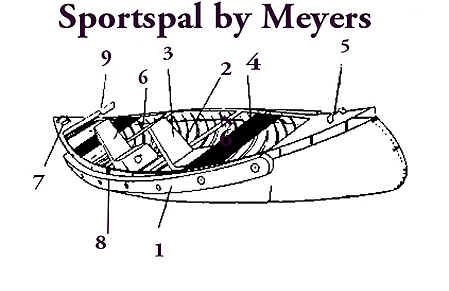

Sportspal Canoe parts diagram




PARTS LIST FOR SPORTSPAL CANOES

KEY PART DESCRIPTION PRICE

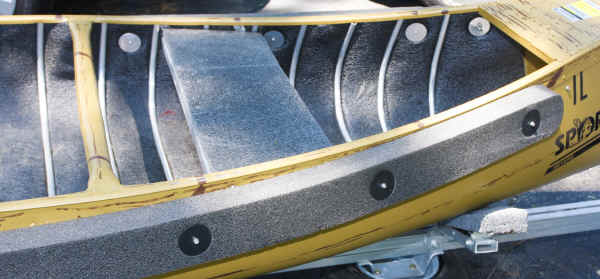

1 SPN-1 Set of two replacement sponsons  including hardware
for 12 to 14 Sportspals  (sponsons are 8'-3" long)
109.95 st
SPN-2 Set of two replacement sponsons  including hardware
for 15 to 16 Sportspals   (sponsons are 11'-2" long)
129.95 st

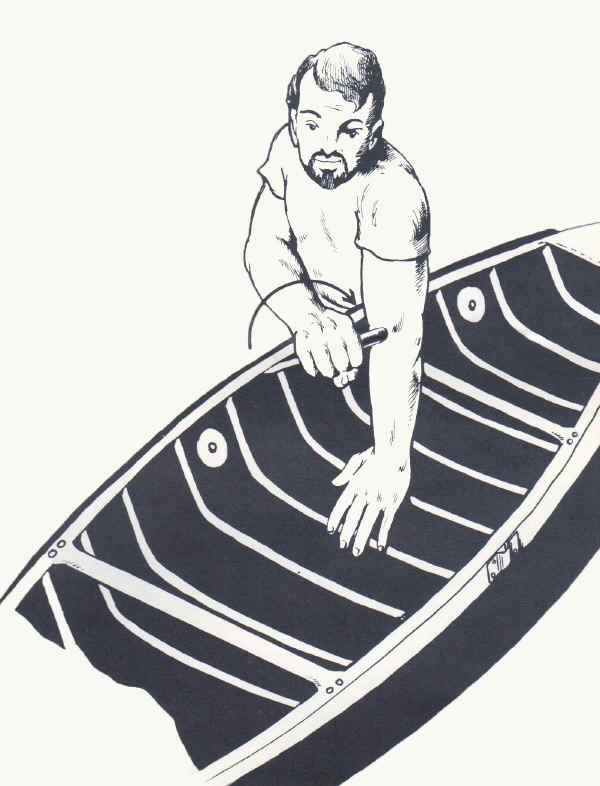

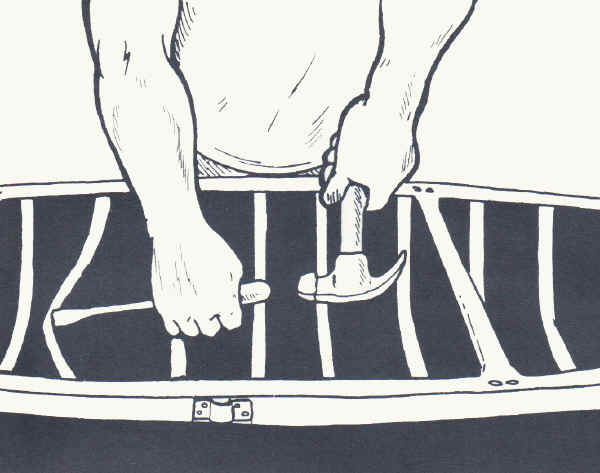

2 CR-1  Canoe Rib , specify location (count from closest end,
 specify bow or stern if square stern.
  14.95 ea
2 CR-2 Canoe rib for older style hull supplied unbent in 60"
 length
  14.95 ea
3 ES-1 Eathafoam Seat (sit in bottom)   49.95 ea

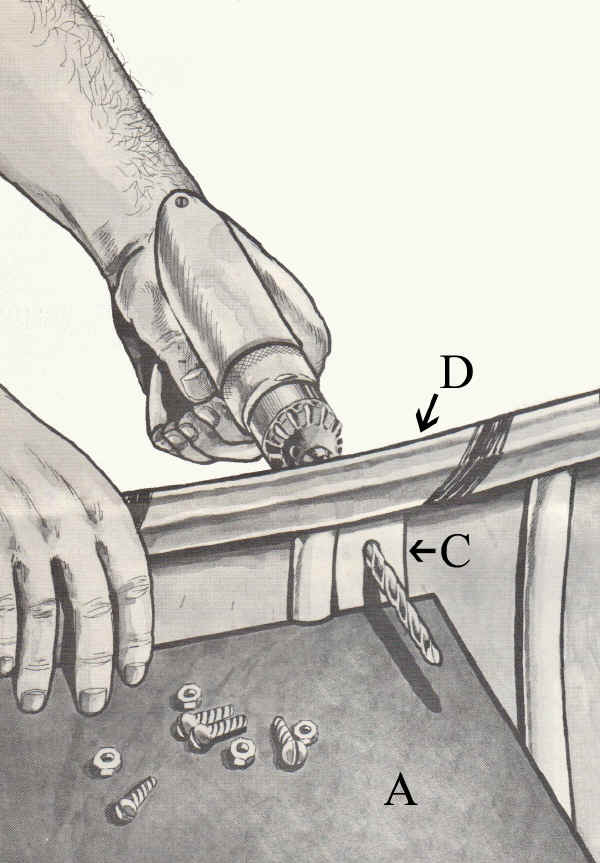

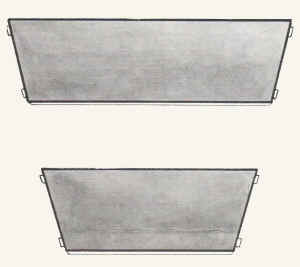

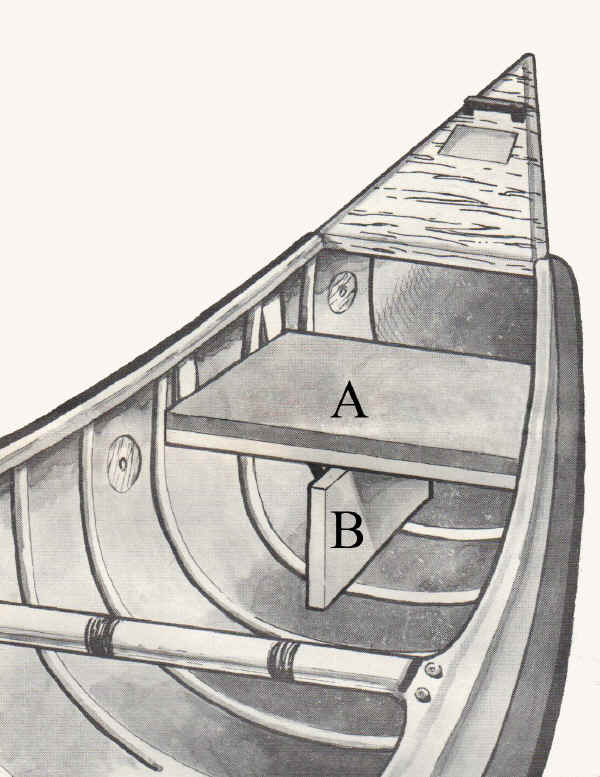

GW-1 Gunwale Seat (specify front/rear)    59.95 ea
GW-CS Center Gunwale Seat ( S-13,S-14,S-15,S-16,X-13 only)   79.95 ea
CH-1 Carry Handle     9.95 ea
6 CT-1 Center Thwart (specify color)   29.95 ea
7 RG-1 Rope Gripper     9.95 ea
8 PLS-1 Paddle (oar) lock socket (specify color)   14.95 ea
CM-1 Motor-mount (Trolling)   39.95 ea
CL-1 Paddle locks (converts standard paddle to an oar)   19.95 pr
CC-1 Porta-Carrier (foam block car-top carrier set)   49.95 set

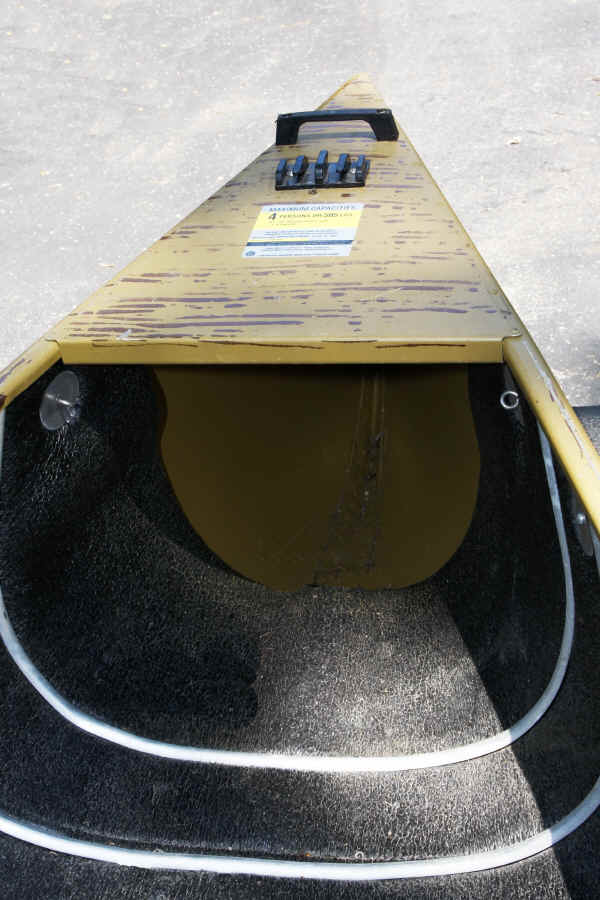

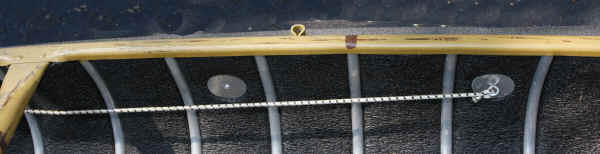

LINER Interior eathafoam liner 60" wide Use old
liner as cut to fit pattern.
LN-12 Liner for 12 foot Model S-12 109.95
LN-13 Liner for 13 foot Model S-13 129.95
LN-14 Liner for 14 foot Model S-14 129.95
LN-15  Liner for 15 foot Model S-15 149.95
LN-16 Liner for 16 foot Model S-16  149.95
DC-1  Sportspal Decals (set)    29.95 st




To order parts, you must supply the following information: Length, Color, Double-End or Square Stern Model Type (Old Style, New Style) Old Style is a one piece hull, folded on seams, hull has raised seams on sides New Style is a two piece hull, joined at keel, hull sides are smooth

Please include name/model boat, year/serial number and color if applicable. We have all Sportspal Parts available.


Contact Us for Assistance
