Dual
or Quad Kayak Trailer
Trailer for transporting two
to four kayaks
|
Trailex Ultra-Light Aluminum Trailers
come with a One Year Limited Warranty. Almost 50% lighter
than steel trailers and they Never Rust |
|
FREE SHIPPING
ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA |

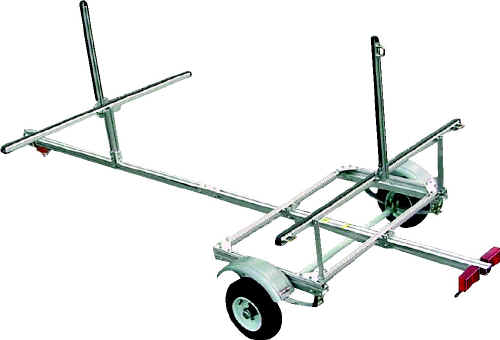

Trailex
Model SUT-250-M-2 Trailer
Trailex
Model SUT-350-M-2 Trailer

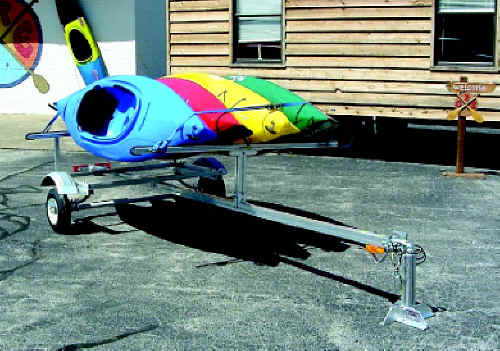

Trailex SUT-250-M trailer with four kayaks
(kayaks not included)
SUT-250-M-2
has a "soft" suspension for light boats
SUT-350-M-2
for longer boats and higher capacity
SUT-250-M-2 and SUT-350-M-2 Trailers come standard with two 33"vertical risers
Risers are easily removed
Model SUT-250-M-2 Multiple Kayak Trailer has epoxy coated leaf springs,
giving it a carrying capacity of up to 250 lbs. SUT-350-M-2 has a 350 lb
capacity and a longer tongue. This
trailer is packaged for UPS shipment, and is easily assembled using only
simple tools. Since the dual or quad kayak Trailer is made of aluminum, it is
maintenance-free in addition to being strong and lightweight. It's light
weight allows towing with today's smaller vehicles. Trailer also has two center Vertical Supports
for tie down support for multiple kayaks. The two vertical risers can be
positioned at any point along the T bars. You could add an additional set
of MKP vertical risers to the Trailer to provide vertical support on both
outer ends of the T-Bars.
All Aluminum, All Bolted Construction, All
Adjustable
 |
Kayaks are carried upright or strapped together side by side
on the SUT-250-M dual/quad kayak carrier. This model can carry one to four kayaks, or you can mix canoes and
kayaks. See our Model SUT-200 for
carrying a single kayak upright. |
| SUT-250-M-2 |
1,108.00
|
+ FREE
SHIPPING
in 48 USA
|
| SUT-350-M-2 |
1,180.00
|
+ FREE
SHIPPING
in 48 USA
|
|
|
ORDER THE COMBO PACKAGE
|
Buy Two
items, and get One FREE
Save $ 50.00 |
(Order the Spare Tire Carrier and Bearing
Buddies with Bra and Receive the Spare Tire for FREE, a 50.00
Value)
Ask for the Combo Package and you will receive:
Spare Tire
Spare Tire Carrier
Bearing Buddies with Bras
What is a Bearing Buddy? View
Here
COMBO Package $89.90
(only when ordered with trailer)
RETAIL VALUE OF PACKAGE IS
$139.90
|
|
Specifications |
Standard Equipment |
|
MODEL |
SUT-250-M-2
|
SUT-350-M-2
|
|
Submersible Taillights
|
|
Capacity: |
250 lbs
|
350 lbs
|
|
Safety Cables
|
|
Weight: |
115 lbs
|
125 lbs
|
|
Tongue Skid
|
|
Length: |
14'-11"
|
18'3"
|
|
Crossbar and End Vinyl Extrusions
|
|
Width: |
72"
|
72"
|
|
High Speed Galvanized Wheels & Tires
|
|
Crossbars: |
72" Width
31" Height
|
72" Width
31" Height
|
|
Adjustable Crossbar Spacing
|
|
Tires: |
4:80 X 8" *
|
4:80 X 8" *
|
|
High Impact Plastic Fenders
|
|
Coupler: |
1-7/8"
|
1-7/8"
|
|
Adjustable Undercarriage
|
|
Electrical: |
Flat 4 prong
|
Flat 4 prong
|
|
Epoxy Coated Springs
|
|
|
|
|
|
Web Strap Clips (4)
|
|
|
* 16" High
|
* 16" High
|
|
Two 33" Vertical Risers
|
|
Optional Extra Equipment |
|
SPGAL |
Spare Tire Galvanized
|
50.00
|
|
STC |
Spare Tire Carrier
|
49.95
|
|
BBY+B |
Bearing Buddies w/Bra (pair)
|
39.95
|
|
JACK |
Adjustable
Front Parking Jack
|
89.95
|
|
30TPAK |
Set of 30 extra T Bolts & Nuts **
|
29.95
|
|
BMK |
Kit to mount your own box *
|
59.95
|
|
FWSC |
Package of Four (4) Extra Web Strap Clips ( For Attaching Strap
End Hooks)
|
19.95
|
* BMK is a kit to allow you to mount your own box to
the Model SUT-250-M-2 or SUT-350-M-2 Trailer. You can mount low cost metal or plastic truck
storage boxes available from most large stores or automotive stores. These
boxes are typically 72" long, so although they would fit canoe paddles,
kayak paddles would have to be of the take-apart type. Alternatively, you
could build your own box and mount it to the trailer with this kit.
NOTE: Box weight plus boats cannot exceed 250 lbs on SUT-250-M-2 and 350 Lbs on
SUT-350-M-2..
** 30TPAK contains 30 each T-Bolts & Locknuts for
attaching your options on the trailer. We do not recommend drilling holes
in the aluminum extrusions. The T-Bolts will slide to any position on any
of the extruded parts to allow you to fasten your own options such as
kayak cradles or other items.
 |
|
Sliding Web Strap Clips Position along the length of the Cross
Bars. A standard number of Clips are included with Trailer
-See Specifications. Additional Clips can be Ordered in Sets of 4
each - FWSC |
Application Information
Select Model SUT-250-M-2 for combined
weight of up to 250 lbs
Will carry two to four kayaks up to 18' in length
Longer kayaks - use safety flags
Select Model SUT-350-M-2 for combined
weight of up to 350 lbs
Will carry two to four kayaks up to 21'-6" in length
Longer kayaks - use safety flags
Two Kayaks would be carried upright, side by
side.
Four Kayaks would be carried sideways,
tightly strapped together with padding in-between the kayaks.
Canoes & Kayaks can be mixed or matched.
Click
Here for Frequently Asked Questions
 |
Typical Trailex Trailer Packaged for UPS Shipment |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
